liquidglass — the research record

13 October 2026 development index: visual status and evidence covers subsequent motion/material corrections, native Atlas verification and cross-stack adapters. The original research and parameter provenance below remain historical; no full parity claim is made.

The optics in this library are measured, not styled. This document is the complete record: the instrument the measurements were made with, the model fitted from them, the mathematics of the V3 deformable selector as its controlling design states it, the code that implements all of it, the tests that gate it, and the device results — including the one gate that fails.

Compiled 2026-09-14. Nothing here is marketing: every number carries its provenance, every failure is reported as a failure, and no claim of parity with Apple is made anywhere in this repository.

Development supplement, 2026-10-04: Atlas stabilization records the opt-in continuous magnifier, Calm travel/whole-bar separation, endpoint precision and desktop evidence. Its new original-frame audit separates the bar's 186px rest, 196px ordinary hold and 204–205px extreme. The navigation-only 1.05 press fits the ordinary hold; extreme asymmetry remains open. Historical measurements below retain their original scope and provenance.

This page is generated

The source of truth is research/README.md in the repository, beside the material it describes. This copy rewrites its file links to point at GitHub, because the documentation site builds only from docs/. Regenerate it with python research/tools/build_site_record.py, which lives in the owner's local research tree.

---

Contents

Part	What it covers
0. How to read this	provenance classes, evidence rules, the document map
I. The V3 model: the controlling design	the mathematics: the two-disk body, containment, projection, dynamics, grasp, the endpoint algebra, source transport, the fold
II. The instrument	the calibration target, the capture protocol, the HDR decode, registration
III. The measured model	the material equation, tint tables, bevel geometry, the four lens states
IV. What measurement cannot settle	the identifiability derivation, the confidence ledger, the claims register
V. The implementation	architecture, every source file, the shader pipeline, the public API
VI. Verification	every suite, every test, what each one gates, the defects they found
VII. Results	device evidence, the gate table, frame timing, the soak
VIII. Limitations	what is unresolved, unmeasured, or authored
IX. Reproduction	the commands, the fixture, the tools
X. Index	every document and artifact, and where it lives

This file is the source of truth. Its copy on the documentation site, docs/research/the-record.md, is generated by tools/build_site_record.py (in the owner's local research tree, not in git) — it rewrites the file links to GitHub, embeds the two figures, and checks the result with mkdocs build --strict. Edit this file, then run that script; do not edit the generated page.

The authority for the V3 work is analysis/V3-MODEL.md — the design document this implementation was built from, reproduced in Part I with its mathematics intact. Where this record and that document differ, that document wins, and Part I names every place the implementation deliberately departs from it.

---

0. How to read this

0.1 Three provenances, never mixed

Class	Meaning	Example
measured	read off the iOS 27 capture set through a known input, with a recorded method and a residual	W = 0.6 R; the tint opacity table; the resting-corner knots
inherited	an effective value carried from an earlier fit — it reproduces pixels, it is not a recovered physical property	the held outward map 1.3u − 0.29; the optical band on the body
authored	a design constant chosen to make a candidate concrete	every spring in the selector; the straight-run fold strength a = 0.8

Most of the material is measured. Most of the motion is authored, and says so. analysis/v3/MODEL-DECISIONS.md classifies every V3 parameter individually.

0.2 What counts as evidence here

• Colour and distance are measured on lossless screenshots over a known input. Video is used for timing and motion only: its compression eats exactly the faint rim detail photometry depends on.
• A comparison against a different app or background is never a whole-image RMS.
• FrameCompleted − IntendedVsync is completion latency, not display presentation time, and is never relabelled as such.
• A two-minute soak is an observation over two minutes, not proof of a memory bound.
• A synthetic test can prove the shader implements a bad-looking equation; a good still can hide a broken release handler. Correctness, reference similarity and owner acceptance are three separate columns and none of them substitutes for another.

0.3 The stopping rule the work ran under

One primary implementation and at most two targeted revisions per issue family. An algebraic or coding bug is repaired, never promoted into a new physical theory. After the bounded revisions the verified components are kept and what remains is classified explicitly rather than tuned away. The frame-time gate in Part VII is what that rule looks like when it costs something.

---

I. The V3 model: the controlling design

Everything in this part is the model of analysis/V3-MODEL.md, stated as it states it. Section numbers refer to that document. The implementation notes at the end of each subsection say what was built and where it departs.

I.1 Frames, snapshots, and the identity invariant (§3)

The CPU controller works in dp and seconds. Geometry is converted once into a stable bar-local physical-pixel frame whose origin does not follow the selector. Positions stay continuous floating point: raster allocation and the recording pad round by their own contract; the selector's moving optical origin does not.

Every presented frame consumes one immutable snapshot:

FrameSnapshot = { time, controllerState, actualBarGeometry, selectorGeometry,
                  layoutAndInkRevision, pageSourceRevision,
                  all source-to-bar transforms, resolved material parameters }

Layout, geometry, source capture, coverage, ink, material and diagnostics all refer to that one snapshot. Sources are recorded before consumers; a changing page from a prior frame is never combined with current geometry. For a destination point p in bar pixels, source map Q, source origin o, recording pad p_pad and source scale S:

q_texture = S · [ Q(p) − o ] + p_pad

with all four quantities in named spaces. pageScale, fieldScale and inkScale are separate; inkScale starts at one native physical pixel per texel.

Identity invariant. If displacement is zero and paint styles match, moving or deforming the selector changes no icon's position. It only changes the aperture. Deforming a completed selector texture violates this invariant.

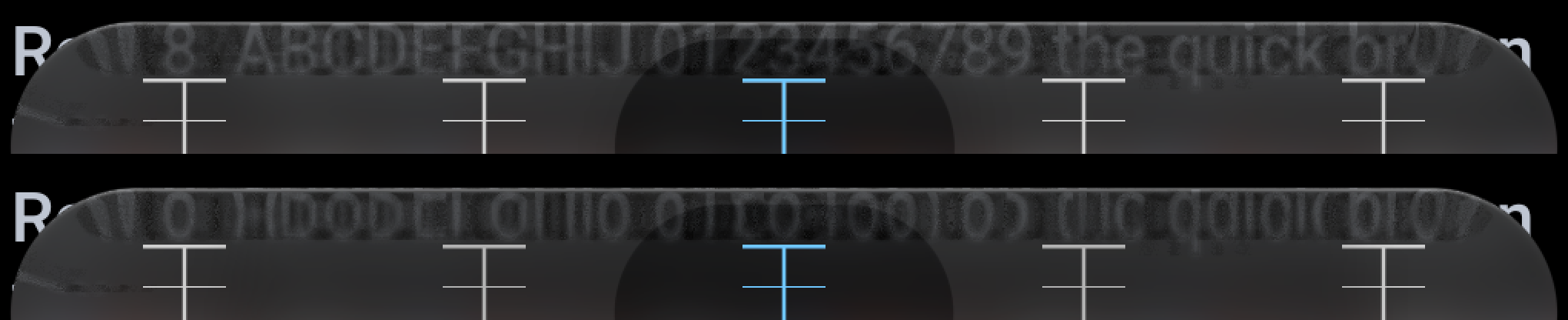

That violation was the shipped behaviour V3 replaces: the previous selector scaled a graphicsLayer that also carried its content, so the label under the lens travelled with the lens.

I.2 The body: the convex hull of two unequal disks (§4)

Five geometric state coordinates,

q = (cx, cy, L, r, k)

with (cx, cy) the horizontal bounding-box centre, L the separation of the two disk centres, r their mean radius, and k half the signed difference of the radii. Then

rL = r − k                      rR = r + k
CL = (cx − L/2 − k,  cy)        CR = (cx + L/2 − k,  cy)
Body = convexHull( disk(CL, rL), disk(CR, rR) )

Three consequences the implementation leans on:

• The horizontal extrema are exactly cx − (L/2 + r) and cx + (L/2 + r). End asymmetry never secretly moves the declared centre.
• The width is L + 2r, independent of k.
• The vertical extent is cy ± (r + |k|) — not r. Using 2r as the full height when k ≠ 0 is wrong, and doing so cost one real defect (Part VI.3, defect 8).

At k = 0 the body is a capsule. Non-zero k gives a larger leading or trailing cap and sloping sides, so L, r and k evolve separately and produce stretch, flattening, tail lag and arrival bulge without stretching the ink texture. This is a reduced-order visual body; it is not a claim of conserved fluid volume.

Feasibility requires

r − k ≥ rMin        r + k ≥ rMin
L ≥  2k + ellMin    L ≥ −2k + ellMin

The last two amount to L > |rR − rL| with a numerical margin, so neither disk contains the other and the external tangents stay defined. Authored limits: rMin = 4 dp, ellMin = 1 dp.

The family is deliberately small: convex, C¹ but not C², and it cannot draw a verified concave neck. That limitation is stated rather than disguised with a global blur or polygon wiggles.

The exact boundary query (§4.1)

Precomputed on the CPU:

delta = (rR − rL) / L
gamma = sqrt(1 − delta²)
nTop    = (−delta, −gamma)          nBottom = (−delta, +gamma)
ATop    = CL + rL·nTop              BTop    = CR + rR·nTop
ABottom = CL + rL·nBottom           BBottom = CR + rR·nBottom

The top and bottom boundary segments join the corresponding A/B points. The exposed left arc is the part of the left circle with radial normal nx ≤ −delta; the exposed right arc has nx ≥ −delta. For any point p:

1. Squared distance to each tangent segment via t = clamp(dot(p − A, B − A)/|B − A|², 0, 1), nearest point A + t(B − A).
2. For each disk, its radial projection is an eligible arc candidate only if its radial direction satisfies that disk's exposed-normal condition; the candidate distance is abs(|p − C| − radius).
3. The smallest squared distance selects the feature. Inside/outside follows from membership in either disk or in the connecting tangent quadrilateral — their union is exactly the convex hull, and quadrilateral membership is four consistently oriented half-plane tests.
4. Signed distance D is negative inside; inward depth is d = max(−D, 0). The outward normal is the selected arc's radial normal or the selected segment's nTop/nBottom. At medial-axis ties the normal is not unique — optics must already have faded to identity there.

The query is constant work: two circle lengths, two segment projections, a few comparisons, one square root. It returns distance, normal, boundary point, feature identity and curvature together (curvature is 1/radius on an arc, zero on a segment), so nothing recomputes them separately in three different shader strings. There is no CPU full-size distance transform per frame and no per-pixel iterative angular maximisation.

Why not a scaled capsule? A scale changes the entire raster and cannot control cap shape independently. Why not a fluid solver? It introduces many unmeasured degrees of freedom, numerical boundaries and GPU work, for a deformation five coordinates express exactly.

Implemented in GlassSelectorGeometry.kt (CPU, eligible-arc form) and GlassBodySource.kt (SkSL, even-capsule fold form). The two are written differently on purpose and scored against each other and against a dense boundary oracle, so one shared algebraic mistake cannot pass both.

I.3 Whole-body containment as linear inequalities (§5)

Build an inscribed convex polygon P of the allowed bar outline. For a circular end of radius R and angular step Δθ, the maximum inward chord error is

error = R · [ 1 − cos(Δθ / 2) ]

and the step count is chosen from the radius and the density so this stays ≤ 0.2 physical px. Straight runs stay exact. Because the polygon is an inner approximation, its error makes the constraint conservative: it cannot permit an unseen outward protrusion between tested angles.

A disk of centre C and radius R lies inside the half-plane n·x ≤ b exactly when n·C + R ≤ b. Substituting the body's two disks turns every polygon plane into two rows that are linear in q:

nx·cx + ny·cy − 0.5·nx·L + r − (nx + 1)·k  ≤  b
nx·cx + ny·cy + 0.5·nx·L + r + (1 − nx)·k  ≤  b

If both disks are inside a convex polygon, their whole convex hull is inside it. That is strictly stronger than testing the centre, a bounding rectangle, or a handful of contour points — all of which the previous implementation did, and all of which let the shape escape between samples.

Position and velocity projection (§5.1)

After an unconstrained spring step q*, solve

min ½ (q − q*)ᵀ M (q − q*)     subject to     A q ≤ b

with the authored diagonal metric M = diag(4, 4, 1, 1, 1) in (cx, cy, L, r, k) order — a projection metric, not a measured mass: preserving the centre is made somewhat more expensive than relaxing the shape. Velocity is projected separately against the active static constraints:

min ½ (v − v*)ᵀ M (v − v*)     subject to     A_active v ≤ 0

which removes outward motion without adding a bounce. The feasible cone contains zero, so the weighted speed cannot increase under this projection. For a moving limit the constraint becomes A_active v ≤ b′(t); if A itself changes, A v ≤ b′ − A′q.

On solver failure: render no infeasible body, retain the last feasible q, remove outward velocity, log it, and mark the controller test failed. Repeated fallback is a defect to fix, not an accepted animation mode. There is no hard clipping of the final picture — shape and position comply before rendering, so the rim stays a rounded body.

Implemented in GlassSelectorConstraints.kt. Declared deviation: the model permits a small active-set solver; an active-set implementation stalled on multiply-infeasible requests, so the projection is a dual NNLS (Lawson–Hanson on G = A M⁻¹ Aᵀ) with constraint generation and pruning. The model's stated criterion is correctness and worst-case time, which this meets.

I.4 Dynamics and distance response (§6)

Every scalar state follows

x″ + 2 ζ ω x′ + ω² (x − target) = 0

with values and velocities preserved on every retarget. The authored preset, with the bounded tuning range the model allows:

State / control	Seed	Allowed range
Tap centre ω, ζ	22 /s, 1.0	18–28 /s, 0.95–1.1
Shape modes L, r, k ω, ζ	26 /s, 0.80	20–32 /s, 0.72–0.95
Held formation threshold	120 ms after an eligible DOWN	100–180 ms
Held formation ω, ζ	36 /s, 1	28–44 /s
Held size demand ω, ζ	24 /s, 0.90	20–30 /s, 0.85–1
Max velocity-driven extra L	0.60 slot widths	0.3–0.7
Max radius reduction	0.12 of base r	0–0.15
Max skew drive	0.18 of base r	0.10–0.25
Release envelope ω	18 /s	—
Grasp attachment ω	40 /s	—

With S the slot width, v the centre velocity and a the pre-contact spring acceleration:

u = |v| / (S · omegaCentre)          z = a / (S · omegaCentre²)

Ltarget = Lbase + 0.60 · S · tanh(u)
rtarget = rbase · (1 − 0.12 · tanh(u))
ktarget = −0.18 · rbase · tanh(z)

In this convention k > 0 makes the right end larger, so acceleration to the right initially leaves a larger trailing left end, and braking excites a larger arriving right end; the independent k spring supplies the delayed shape response, and the whole trajectory is tested for mirror symmetry. Collision corrections are never acceleration input — using them would amplify contact chatter into shape kicks.

A numerical prediction made before any fitting (§6.1)

For a critically damped centre spring starting at rest a distance D from its target:

remaining(t) = D (1 + ω t) e^(−ω t)
v(t)         = D ω² t e^(−ω t)
vPeak        = D ω / e        at t = 1/ω

so the peak normalised speed is D / (e · S), and the extra-length targets for 1, 2 and 4 slots are ≈ 0.211 S, 0.376 S and 0.540 S. The 90 % centre-travel time is 3.89/ω ≈ 177 ms at ω = 22. These are predicted drives before shape lag and contact — design predictions, not Apple time constants — and the constrained trajectory is what must be compared visually.

Exact stepping (§6.2)

For a frozen target over dt, with d = x − target. Under-damped (ζ < 1), a = ζω, b = ω√(1 − ζ²), E = e^(−a·dt):

dNew = E [ d cos(b·dt) + (v + a d) sin(b·dt) / b ]
vNew = E [ v cos(b·dt) − (a v + ω² d) sin(b·dt) / b ]

Critically damped (ζ = 1):

dNew = e^(−ω·dt) [ (1 + ω·dt) d + dt·v ]
vNew = e^(−ω·dt) [ (1 − ω·dt) v − ω² dt·d ]

A ζ > 1 preset must use the real-root overdamped solution, never the under-damped square root. The simulation clock has a maximum substep of 1/240 s; input events are evaluated at their actual timestamps, subdividing at event boundaries, and the display refresh interval is never conflated with an input sampling interval. A 50 or 100 ms delayed frame runs the bounded substeps and renders once; a suspension cancels the abandoned interaction rather than replaying a stale gesture. Future pointer samples are never synthesised.

I.5 Grasp, accommodation and release (§7)

One state owner: Rest, PressPending, TapTravel, Held/Drag, Release/Settle, Cancel/Lifecycle. The model changes visual response, not who is allowed to select a tab: DOWN gives a subtle press indication constrained inside the bar and does not set held protrusion; a short tap selects once through the existing clickable and starts TapTravel; a sustained eligible hold or a recognised horizontal drag enters Held/Drag; a drag commits once, from the driving pointer's genuine terminal UP.

A grasp that survives size changes (§7.1)

With A = (L + 2r)/2 the current half-width and a fixed normalised grasp beta ∈ [−0.8, 0.8]:

g = cx + beta · A          hence          cx = g − beta · A

If a hold is acquired away from the body, an attachment offset o with g(t) = fingerX(t) + o(t) is initialised to preserve g and its velocity, then relaxed critically to zero at ω = 40 /s — so the finger acts immediately without teleporting a remote selector. Width changes then happen around the grasp, and the actual centre velocity is

vc = vg − beta · vA

which is what release carries. A navigation fling is decided by the finger's terminal velocity, so a stationary finger does not fling a tab because the label under it is being accommodated.

Stable admission of nearby content (§7.2)

Candidates are judged against a fixed base interaction aperture, never against the already expanded lens — otherwise growth admits content, which causes more growth. Start with the item nearest the grasp and at most one adjacent neighbour; admit a neighbour when its icon centre is at least 2 dp inside the base aperture, retain it until 4 dp outside. For the admitted, padded union [Bleft, Bright], left = g − (1+beta)A and right = g + (1−beta)A give directly

Arequired = max( Abase,  (g − Bleft)/(1 + beta),  (Bright − g)/(1 − beta) )

Seed padding 6 dp; maximum width min(barWidth + 2·heldOverflow, 2.4·S). The size demand springs toward Arequired every simulation step, including stationary-finger intervals. Changing admission changes targets, never the current q or velocity.

The held release envelope (§7.3)

A protruding held body cannot be required to satisfy the tap envelope instantly on UP. For each rest-bar plane, record the initial excess d0 = max(0, A_j q − b_j) and the outward support speed u0 = max(0, A_j v), and allow

a_j(t) = [ d0 + (u0 + omegaRelease · d0) t ] · e^(−omegaRelease · t)          omegaRelease = 18 /s

applied as A_j q ≤ b_j + a_j(t) with the matching velocity-derivative constraint. It starts at the present excess, has initial derivative u0, may briefly continue existing outward motion, and decays. No new outward speed is introduced if u0 was zero, and ordinary tap travel never receives this allowance.

Implemented in GlassSelectorDynamics.kt. Four declared deviations, each with its reason, are in Part V.4.

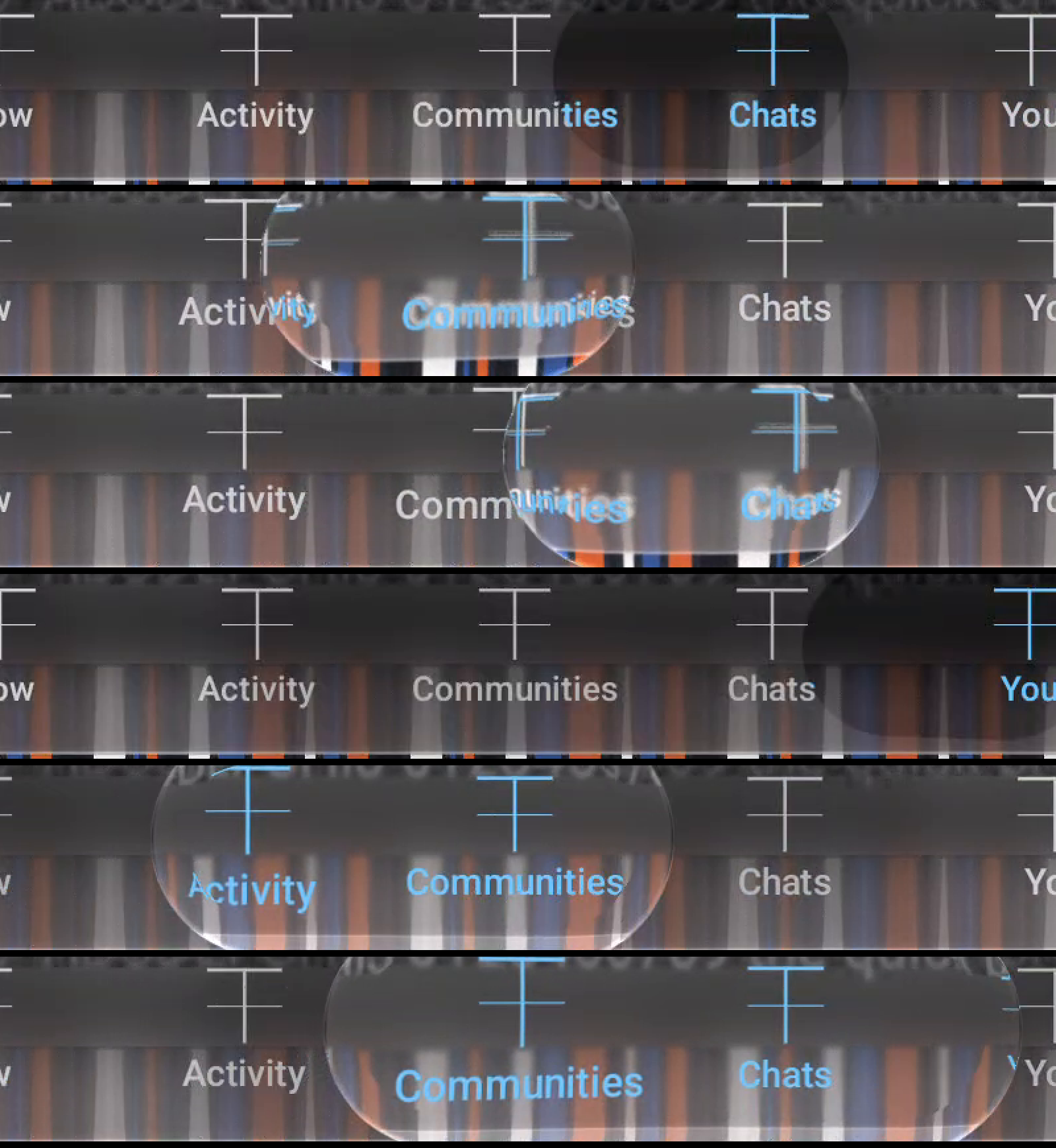

I.6 Exact image composition: replace complete endpoints (§8)

At one destination pixel, in one declared compositing colour space, with B0 the opaque page/bar material without semantic ink, B1 the same material seen through the selector (also without ink), U0 = (c0, a0) the ordinary premultiplied ink at its ordinary position, U1 = (c1, a1) the selected ink at its refracted source position, and m the aperture coverage:

C0 = c0 + (1 − a0) · B0
C1 = c1 + (1 − a1) · B1
C  = (1 − m) · C0 + m · C1

That is the exact endpoint coverage equation. The implementation draws C0 as the base and then the fully composed selector endpoint with premultiplied output (m·C1, m); ordinary source-over then computes the equation exactly.

Why the obvious alternative is wrong (§8.1)

Mixing ink alone and alpha-overing it on separately mixed material gives

Cnaive = (1 − m) c0 + m c1 + [ 1 − (1 − m) a0 − m a1 ] · [ (1 − m) B0 + m B1 ]

Cnaive − C = m (1 − m) (a1 − a0) (B1 − B0)

The error vanishes only in special cases, and a moving rim changes both glyph coverage and material — precisely where the cross term matters. This is algebra, not a fit. It is also the mechanism behind the doubled label the owner rejected, and the reason V3 replaces complete endpoints instead of laying an apparently sharp row over a blended background.

The source graph (§8.2)

current page P
    → ink-free bar material B0
    → ink-free through-source for the selector → selector material B1

one item layout → ordinary native-resolution ink U0
                → selected native-resolution ink U1

body geometry + source maps + U0/U1 + B0/B1 → endpoint compositor → final bar

The through-source contains the bar material over the correct raw page outside its outline, and neither the selector nor either ink variant. No capture may contain a consumer of itself. Nested maps do not commute — Qbar(Qlens(p)) ≠ Qlens(Qbar(p)), and tone, blur and rim shading do not commute with arbitrary warps either — so the safe implementation keeps a bounded ink-free bar intermediate from the same frame. Ordinary and selected ink are two cached paint variants of one layout, with exactly one accessible/clickable row.

Native ink, alpha and the spectral split (§8.3)

Semantic ink starts as one monochrome geometric sample at native physical resolution, receives no page blur and no wide/high-pass material operator, and is invalidated for text, font, density, palette, layout and emphasis changes. The union-alpha RGB split is not correct per-channel transmission: if a split is retained it must compose against the known endpoint material per channel,

C1_c = ink_c( Q_c(p) ) + [ 1 − alpha( Q_c(p) ) ] · B1_c

A white glyph found only by the red ray must not block green and blue through a maximum-of-three-alpha value. Bulk ink dispersion therefore defaults to zero, and no broad label ghost may be excused as a colour fringe.

Implemented in GlassEndpointShaderSource.kt plus the endpoint path in LiquidGlass.kt: the material pass emits (B1, 1) when uEndpointAlpha = 1, the ink pass emits (c1, a1) unmasked, both compose in one offscreen layer to C1, and the aperture pass emits (m·C1, m) which source-overs onto C0.

I.7 Source transport from the actual contour (§9)

With b(ℓ) the nearest boundary point by arclength, outward normal n, tangent t, curvature κ (n_ℓ = κt, t_ℓ = −κn):

p    = b(ell) − d · n
Q(p) = b(ell) − s(ell, d) · n + tau(ell, d) · t
     = p + [ d − s(ell, d) ] · n + tau(ell, d) · t

s is source depth, not a displacement magnitude; a negative s samples outside the outline. tau is an explicit tangential shift, initially zero. Differentiating:

p_ell = (1 − kappa·d) t                 p_d = −n
Q_ell = (1 − kappa·s + tau_ell) t − (s_ell + kappa·tau) n
Q_d   = tau_d · t − s_d · n

so in the local destination/source bases (t, −n) the Jacobian is

      ⎡ (1 − kappa·s + tau_ell)/(1 − kappa·d)      tau_d ⎤
J  =  ⎢                                                  ⎥
      ⎣ (s_ell + kappa·tau)/(1 − kappa·d)           s_d  ⎦

With tau = 0 and no arclength dependence the principal factors are Jt = (1 − κs)/(1 − κd) and Jn = s_d: tangential stretch already follows from a normal-only map around a curved edge. Conversely, blending a straight and a corner profile introduces s_ℓ and therefore shear even when tau = 0 — the simplified factor alone cannot describe that transition.

The band joins identity before the inward normals meet: W = 0.6 · min(rL, rR), which agrees with the measured 0.6 R convention for a symmetric bar.

The optional physical-consistency construction (§9.2)

If a small-slope single optical potential is asserted, Q = p + ∇Φ requires a symmetric Jacobian, which a spatially varying normal-only map generally fails. For a profile reaching identity at W(ℓ) one compatible potential is

Phi(ell, d) = − ∫_d^{W(ell)} [ s(ell, u) − u ] du        so   Phi_d = s − d

and the corresponding tangential contribution is tau = Phi_ell / (1 − kappa·d) (the upper-limit term vanishes because s(W) = W). This shows how a physical-gradient model would generate extra tangential transport when a bevel varies along its perimeter. V3's default keeps tau = 0 — an effective image map — because the evidence does not require the correction, and it is explicitly not offered as an aesthetic slider.

I.8 The three transport programs (§10)

Program	Form	Provenance
Resting corners	GlassRestMapTable: 12 knots, linear except a Hermite last interval, identity beyond 0.8333	measured (the d < 6 reference-px extension is unmeasured and constant)
Straight runs	f(u) = u + a(1 − u)³, a = 0.8	authored
Held ink	u + w(u)(0.3u − 0.29), w fading across 0.45–0.55	inherited constants, authored connection
Arc/run blend	geometric, from the shape's own nearest-feature coordinate	authored

The measured corner knots, at reference R = 72 px, W = 43.2 px:

U = [0.138889, 0.162037, 0.185185, 0.219907, 0.254630, 0.300926,
     0.347222, 0.439815, 0.532407, 0.625000, 0.729167, 0.833333]
V = [0.875903, 0.823079, 0.784259, 0.741898, 0.711296, 0.681921,
     0.661713, 0.642755, 0.649884, 0.681898, 0.745278, 0.833333]

The straight-run fold. For u = d/W on 0 ≤ u ≤ 1, s = W·f(u), identity beyond W. The profile joins identity in value, first and second derivative, and

f(u)  = u + a (1 − u)³
f'(u) = 1 − 3a (1 − u)²

For a > 1/3 there is exactly one turning point:

uFold = 1 − 1/sqrt(3a)              fMin = 1 − 2 / (3 sqrt(3a))

At the authored seed a = 0.8: uFold ≈ 0.35450, minimum source depth ≈ 0.56972 W. The map samples each destination once, and the same source landmark can appear at two destination depths because f reverses orientation — so a second mirrored image must not be mixed on top, or the fold is duplicated. If one parameter proves insufficient the model allows exactly one extra coefficient, f(u) = u + (a + b u)(1 − u)³ with |b| ≤ 0.25a, which still has one fold and a C² identity join. That bounded revision was not needed.

The continuous held ink map. The inherited outward correspondence sOuter/W = 1.3u − 0.29 carried an ≈ 0.14 W jump at u = 0.5 that the captures never established as a true discontinuity. V3 replaces it with a single coordinate blend — not a blend of two glyph images:

w(u)     = 1 − smoothstep(0.45, 0.55, u)
fHeld(u) = u + w(u) · (0.3 u − 0.29)
sInk/W   = u + hOptical · ( fHeld(u) − u )

with hOptical moving continuously with the held material state.

I.9 What a fold predicts, and how to sample it (§11)

Near a non-degenerate fold at d*, s(d) = s* + ½ A (d − d*)² + … with A ≠ 0, so a source landmark at s* + ε on the two-root side appears at

dPlus/Minus = d* ± sqrt( 2 ε / A )

The two displayed copies separate as the square root of the landmark's distance from the fold minimum, with opposite normal orientation. This is falsifiable, and it explains text appearing to adhere and stretch at an edge without any temporal lag. A broad region with s_d = 0 is a different thing — it reads the same source row over a whole band and yields a constant strip; it is not a substitute for an isolated turning point.

Footprint: the covariance of a linearly mapped unit output pixel is Σ = J Jᵀ / 12, and with J = [a b; c d],

T        = a² + b² + c² + d²
D2       = (a d − b c)²
sigmaMax = sqrt( ( T + sqrt( max(T² − 4 D2, 0) ) ) / 2 )

Large singular values mean minification and need filtering; small ones mean magnification and are not a reason for a wide blur. Brightness is never multiplied by 1/|det J|.

I.10 The runtime contract (§13)

Per-frame CPU work is small and explicit: consume input and layout revisions; step the handful of spring states on the common clock; refresh the bar polygon only when its shape or size changes; project the five coordinates and the active velocities; compute two disk centres/radii, two tangent normals, four tangent endpoints and inverse segment lengths; resolve transport, material and source transforms into one snapshot. No per-frame full-screen re-record because the selector moved, no CPU full-resolution distance transform for an analytic body, and no layout pass per physics substep — substeps change numbers, not Compose nodes.

Per selector pixel: one constant-size geometry query, a short source-map evaluation, the existing material work, one native ink fetch, and endpoint composition. A justified spectral split costs three ink fetches; a selected edge pixel can cost four subpixel endpoint evaluations. These are operation counts, not millisecond promises — the device decides whether the budget is met, and Part VII says what it decided.

Uniform and data groups, by update cadence:

Group	Examples	Cadence
Body geometry	CL, CR, rL, rR, tangent endpoints/normals	per displayed frame while moving
Bar geometry	outline, allowed polygon, render transform	layout or actual bar change
Source transforms	page origin/scale, ink origin/pad/scale, texture extents	source/layout revisions
Transport	role, W, measured-table selector, straight a/b, held optical amount	style/state
Material	frozen tint/kernel/path weights, rim parameters	style/state
Ink	source revisions, paint variants, emphasis layout	content/style/layout change

---

II. The instrument

II.1 Why a calibration target, and not app footage

A glass panel is a function from the pixels behind it to the pixels on screen. Over a photograph or an app screen that function cannot be recovered, because nobody knows what the input was. Over a synthetic target every pixel is known by construction, so one screenshot is an exact input/output pair, and the blur radius, the refraction band width, the tint curve, the dispersion and the legibility response fall straight out of it.

Two targets, calibration-target-light.png and calibration-target-dark.png, 1170 × 2532 — exactly the capture device's screen (iPhone 13, 3×, 60 Hz, iOS 27.0). They are in datasets/calibration-targets/.

II.2 The bands, and what each one inverts

Band	Rows	What it yields
Hard black/white split	0–260	sampling direction — black left of x = 585, white right
Grey ramp	260–430	displacement, directly: value = x · 255/1169, so an observed value names the x it came from
Vertical stripes	430–730	blur radius, from surviving contrast at 4/8/16/32/64 px
Horizontal stripes	730–960	the same, in the other direction
Primaries	960–1120	dispersion (colour-managed — reference in-frame, not to the file)
Text	1120–1580	legibility at 11/13/15/17 pt
Checkerboard	1580–1780	blur cross-check at a known cell size
Grid	1780–2132	labelled in points, for locating anything
Tab-bar zone	2132–2532	dense detail exactly where a real toolbar lands

II.3 Capture protocol

Targets transferred at original quality only — a recompressed target measures the encoder, not the glass. Reduce Transparency, Increase Contrast and Reduce Motion off; one run Light, one Dark; the Liquid Glass transparency slider position recorded with every capture, because the material's opacity is a user setting with a range and an opacity measured without knowing it means nothing. Brightness, True Tone and Night Shift are irrelevant: a screenshot captures the framebuffer before the display touches it.

Screenshot anything measured for colour or distance. Record video only for timing and motion.

II.4 The decode correction that saved the dataset

Every screen recording is HDR: HEVC Main 10, PQ transfer (smpte2084), BT.2020, TV range. A plain -pix_fmt rgb24 decode emits the PQ signal as if it were sRGB, so white reads 127 and the grey ramp follows the PQ curve (17→30, 51→54, 102→81, 153→100, 204→115). Nothing was dimmed on the phone; the decoder was never told what it was decoding.

-vf "zscale=t=linear:npl=100,format=gbrpf32le,
     zscale=p=bt709:t=iec61966-2-1:m=bt709:r=full,format=rgb24"

Verified on an uncovered frame: grey-ramp residual −0.14 ± 0.39 levels (99.7 % within 1), white exactly 255, the 4 px stripes at full 0–255 contrast, primaries within a few levels, stripe phase shift 0 (corr 1.000). The output transfer must be iec61966-2-1; bt709 leaves a +5.8 mean error.

Two registration mistakes, recorded so they are not repeated. The videos were first judged by the mean difference over the whole frame and declared unusable; then by exact-match fraction (55 %, median 0) and declared registered and undimmed. The second test was fooled because black pixels match under any tonal transform and the target is about half black. The test that works on a lossy video is the fraction of pixels within 4 levels of the target, judged on textured pixels — 97 % on an uncovered frame. This error nearly threw away the best data in the set.

II.5 The standing colour confound

Neutral greys return exactly (44 stays 44, 196 stays 196, black and white untouched). Saturated colours do not, because the display is wide-gamut and the screenshot converts back to sRGB:

(255,0,0) → (234,51,35)        (0,255,0) → (117,252,76)
(0,0,255) → (0,0,245)          (255,255,0) → (255,255,84)

So greyscale measurement is exact and colour measurement must take its reference from an uncovered region of the same screenshot. This is why the target is mostly neutral.

II.6 The corpus

Six screen recordings over the target (1170 × 2532, 60 fps, HEVC, ≈ 45 000 frames), four stills that register 1:1, a WebDriverAgent rig set at three tint positions, and reference app screenshots with unknown backdrops (reference, not instrument). The slow drag is what makes the set valuable: the same glass edge passes over stripes, text, checkerboard and grid in turn, so the displacement field is measured hundreds of times at different alignments.

Toolchain facts that cost time before they were written down: ffmpeg is not on PATH; HEIC needs pillow-heif; GPU decode is slower than CPU here (17.0 s vs 9.7 s for 900 frames, because frames must be copied back and converted anyway); and never write a PNG per frame — 45 000 frames is 40 GB and tells you nothing on disk.

---

III. The measured model

Fitted by tools/fit_model.py and tools/esf2.py; numbers in analysis/model.json, tables in analysis/model_tables.md, narrative in analysis/MODEL.md, raw record in analysis/FINDINGS.md. Units: the phone is 3×, so px/3 = pt; luma is sRGB 0–255; t is the Tint Amount slider (0–100, default 50); R is corner radius, W bevel width, d display depth inside an edge along the inward normal, s the backdrop depth actually shown at d.

III.1 Two families of glass

• In-app glass (navigation pill, round buttons, app toolbar) follows the app's colour scheme strongly: Light lifts black to ≈ 105–179; Dark keeps black at ≈ 35 and pulls white down.
• Shell glass (Home Screen icons, dock, folders, App Library, Control Center tiles and backdrop, notification cards) takes its tone from the wallpaper and ignores Light/Dark. Between appearance twins of the same Home Screen only glyphs, labels and clock hands change (0.1–1.3 % of pixels); the glass numbers are identical.

Library rule: appearance is an input to in-app material tone and to filled panels, never to shell glass. Shell glass is driven by the backdrop and by Tint Amount.

III.2 The material equation

out = (1 − a(t)) · [ w(t) · B_fine + (1 − w(t)) · B_wide ] + a(t) · C + L

and — corrected 2026-09-12, FINDINGS 22 — the fine term is one-dimensional, along the element:

B = W(26 px, both axes) + w(t) · [ F(1.2 px) − L(along the bar, 26–44 px) ]

Measured on the Photos toolbar pill: an 8 px stripe parallel to the edge keeps 0.49 (dark) / 0.64 (light) of the material's transfer, flat from 9 px below the straight edge to 33 px; a 20-row band perpendicular to it fits a single 26 px Gaussian to 0.4 levels rms with a fine share of 0.02; and the detail stops within two rows at the stripe band's own edge, so nothing is averaged across the bar. Content uniform along the bar cancels in the high-pass and is left to the wide kernel alone — which is why a boundary running across a bar leaves no step.

Open: whether the sharp axis is the screen's x or the element's long axis. Both probes were horizontal bars.

III.3 The fitted constants

• B_fine: Gaussian σ ≈ 1–2.5 px (0.4–0.8 pt). B_wide: σ 26–38 px (≈ 10 pt). The earlier "≥ 70 px" was window-limited by the edge-spread estimate and is withdrawn.
• Fine share w(t) = 0.8 (1 − t/100)^1.3 from the pixel fit; the shipped library uses w = 0.95 (1 − t/100)^1.5. Both give ≈ 0.34 at the default.
• Tint opacity a(t) = 1 − (white − black)/255:

t	a light	a dark
0	0.435	0.416
29–31	0.514	0.439
50	0.565	0.451
62	0.600	0.510
86	—	0.655
100	0.733	0.737

Light rises early (concave), dark late (convex); both end at ≈ 0.73. Quadratics in u = t/100: light a = 0.436 + 0.219u + 0.078u², dark a = 0.421 − 0.122u + 0.442u² — but the dark opacity is read from the table, not the quadratic, which overshoots by 0.02 at t = 50 (five levels over white). - Tint colour and lift: light C = 241 (constant at every t), L = 0; dark C = 0, L = 35 (31–39). Check: dark t = 0 over white = 0.584·255 + 35 = 184 (measured 180); light t = 100 over black = 0.733·241 = 177 (measured 179). - Consequence: at t = 100 the material over white still reads 247 (light) / 105 (dark); at t = 0 it is nearly clear, sharp glass. The single Gaussian one would fit across a hard edge (σ = 1.2 + 39.4 (t/100)^3.3) is the two kernels mixing, not a real blur — 16 px stripes keep 36 % contrast at t = 50, where a 5.5 px blur would leave 3 %. - Mixing in linear light fits no better than sRGB (RMS within 0.3 either way) and, implemented, lifts the material over black by 7–13 levels more than the phone. Rejected; the sRGB blend stands. - The toolbar is its own role: light is white at a = 0.552/0.570/0.579/0.595/0.667 (t 0/31/50/62/100), dark is black over L = 35 at a = 0.550/0.469/0.452/0.408/0.452/0.567/0.626 (t 0/29/35/50/62/86/100).

III.4 Bevel geometry for any element

• W = 0.6 R — 0.55 ± 0.11 across icon R45→W30, folder R95→W55, dock R122→W50; the cover sheet R142→W90 gives 0.63. No cap is needed over the measured range 15–50 pt.
• Displacement is along the local inward normal; straight edges bend nothing along themselves (the dock's long edges pass vertical stripes undisturbed); sampling is inward only.
• The profile is the cover sheet's table scaled by W. Below R ≈ 15 pt it is unmeasured.

III.5 The cover-sheet lens — the strongest geometric measurement in the set

Fully formed, W = 90 px (30 pt) against a sheet corner radius of 133–151 px, so W/R = 0.63. Display depth d → shown source depth s, G channel, both targets, all three tints, both recorders:

zone	d (px)	s (px)	in units of W
interior	≥ 80	d + 1	identity from d = 0.9 W
stretched	78 / 72 / 66 / 59 / 54 / 47	80 / 76 / 72 / 68 / 66 / 64	d 0.52–0.9 W shows s 0.71–0.9 W: 2× magnification
fold	25–47	62–64	stationary seam at s = 0.70 W
mirrored	25 / 20 / 17 / 8 / 5 / 3 / 0	64 / 66 / 68 / 72 / 80 / 84 / 88–96	d 0–0.28 W shows s 0.71–1.07 W upside down

Content 0–62 px (0.69 W) inside the edge is never displayed; content 62–96 px is shown twice; nothing outside the edge is sampled. Dispersion appears only in the mirrored zone (R 5–7 px = 0.07 W deeper than B), none in the stretched zone.

When the lens exists: not for the first ≈ 350 px of pull (identity only), fully formed at 350–600 px while the finger tracks the sheet, slightly relaxed beyond. Synthetic drags that commit the sheet in 3 s show only a 2–4 px inward offset and no fold. Rule: lens strength 1 while interactively tracked past ≈ 350 px; a committed animation is lens-free.

The dim below the sheet edge is multiplicative, measured identically at two tints in two recorders:

k = 1 − 0.311 · (1 − e^(−x / 450 px))          saturating at 0.706 from ≈ 700 px of pull

No blur below the edge.

III.6 The lens of chrome at rest — arcs only

At the Photos toolbar's ends (R = 70), identical at t = 0/50/62, both appearances, both targets, 12 measurements with spread under 2 px: s(d) = 27, 26, 24, 23 (d 6–16), 24 (18–20), 25.5 (22), 27 (24–26), 29, 31, then identity from d = 32 — a plateau at 0.33 R over the outer third, easing to identity by 0.46 R.

Straight runs show nothing: the dock's top edge leaves a block boundary 30 px inside in place, and the toolbar's straight edge keeps stripe contrast flat from the rim. This corrected an earlier claim that "chrome at rest shows no edge ring", which had been read off a straight edge over a horizontal ramp and was blind to vertical displacement.

Implemented as restSource(u) with knots in W = 0.6 R — 0.68 at 0; 0.55 over 0.14–0.38; 0.64 at 0.62; identity from 0.76 — applied through a corner weight and the true radial normal. The library then measures back 24, 20, 17, 15, 13, 11, 9, 7, 6, 4, 3, 2, 1, 0 against the phone's 25, 22, 17, 15, 13, 11, 9, 7, 6, 4, 3, 2, 1, 1, 1, 0 over d = 2–32.

III.7 The tab-bar lens under a finger

Measured from the Phone and App Store drags in LOLL8185. While a finger holds the selection: the whole bar grows ×1.05 about its centre and lifts +16/255; the resting indicator swells into a capsule 5 pt proud of the bar and 21 pt wider; the tab under it grows ×1.18 about its own centre. The lens's interior shows the bar's output as it is, plus 0.11 of the raw content behind the bar and 1 % white. Its band is the outer 0.5 W (0.3 R): a pixel at depth u shows the exterior from

s = 1.3 u − 0.29 W

and from 0.5 W inward content is shown where it is, with the source between 0.36 W and 0.5 W hidden — a seam. Rim: a 3–4 px line of +68 over black top and bottom with a tail 16 → 1 over 15 px; a 2 px dark step of −30 at the sides. The lens's content lags a frame while it moves.

The bar and its lens are one surface. Where the two outlines cross, the bar's edge bows out to meet the lens rather than creasing: the silhouette stands 12 px above both outlines at the crossing and rejoins the flat run about 40 px away — a polynomial smooth minimum at k = 48 px (16 pt). The lens is also gel: 13 px proud at rest, 7–8 px at 300 pt/s, about 5 % of its height, gained back along the travel.

Its colour fringe is small: at the rim over black the channels separate by at most 16 levels on a line peaking at 65 — about 0.45 px of displacement, blue just outside the line, red just inside. The 0.07 figure was fitted on the band, where compression magnifies the separation. Use 0.006.

III.8 System backdrops and shell roles

Layer	Blur σ px (pt)	Tone
Control Center over app content	23.2 (7.7) at t ≤ 50; 24 at 62; 27.5 at 86; 32–33 at 100	gain 0.32; offset = 142 − 0.864 · mean luma behind
Control Center over Home Screen	16–21 (5.5–7)
App Library	15–26 (5–9)
Today view	26–28 (9)
Customize sheet	30–40 (10–13)	255 → 180
Context menu	28–29 (9.5)	gain 0.24, +48; screen behind dimmed ×0.52
Spotlight	62–80 (21–27)	filled panel, +17 levels in light

The backdrop tint is adaptive to content, not to appearance. Tint Amount moves the system blur only above t ≈ 60 and the tone by ≈ 10 levels at t = 100.

Shell elements at Tint 50 over the wallpaper (itself dimmed ×0.773 in Clear-icon mode): clear icon R 45–83, σ 6–7 px, 14→67 and 197→165, bright rim on the top edge and a darker contour below; dock R 122–136, σ 2.5–3.8, gain 0.85 lift 13, bending stripes over ≈ 100 px at the ends only; Control Center tile R 105 with its outermost 1–5 px not lifted (a dark line); notification card R ≈ 60, +29 on a 168 backdrop, flat, no edge.

III.9 Measured timing

Event	Measured
Round glass button press	+39 luma, ≈ 170 ms in, ≈ 200 ms out, held while down
Photos chrome show/hide	16–66 ms (1–4 frames), no fade
Control Center formation	blur forms with pull progress; durations gesture-bound
Cover-sheet lens	forms past ≈ 350 px of tracked pull

III.10 Where the implementation landed against the phone

• Light appearance within ±6 levels at t = 0/50/100 over black and white; dark within +5 over black and 6–11 low over white. Edge profiles within 5 levels at every depth.
• The toolbar role renders and measures back within 4 levels at every slider position in both appearances (6 at the read-back dark t = 0).
• Pixel 7: within 2 levels of the JVM render at t = 0/50/100 in both appearances. Galaxy S24+: within 2 levels at every sweep position for pill, buttons and toolbar, one outlier (dark t = 86 toolbar).
• Frame times with six panels re-rendering every frame: Pixel 7 21 ms median / 32 p90 / 44 p99; S24+ at 1440 × 3120 17 / 28 / 38 with GPU 7 ms median.

The standing photometric residual: the phone's tone responds more to brightening than to darkening in the wide term. Neither a symmetric blur in sRGB nor in linear light reproduces that asymmetry. A luminance-adaptive lift is the next candidate and is not adopted; the asymmetry stays open.

---

IV. What measurement cannot settle

IV.1 The identifiability result

For the restrictive physical model — smooth monotone top surface h(d), flat lower interface, homogeneous index n > 1, non-negative gap g, orthographic viewing, backward ray exiting through the bottom:

alpha = atan(h')
beta  = asin( sin(alpha) / n )
theta = alpha − beta
gamma = asin( n sin(theta) )
s − d = h · tan(theta) + g · tan(gamma)

These require bottom transmission, |n sin(theta)| < 1, and no earlier sidewall exit; they cannot silently continue through total internal reflection. For small slopes alpha ≈ h', beta ≈ h'/n, theta ≈ (n−1)h'/n, gamma ≈ (n−1)h', so

s − d  ≈  (n − 1)(h/n + g) h'  =  d/dd [ (n − 1) h² / (2n) + (n − 1) g h ]

Measuring displacement determines the derivative of an effective potential. It does not separately determine n, g and h. With Psi(d) = ∫ (s − d) dd, a whole family of height profiles

h(d) = − n g + sqrt( n² g² + 2n [ Psi(d) + C ] / (n − 1) )

reproduces the same observation for any n, g, C that keep it real and the geometry valid. The earlier near-equivalence of n = 1.5 and n ≈ 1.845 on transmission observables is this ambiguity, not a disagreement to be settled by fitting harder.

The same model carries a sign restriction: with h' ≥ 0, h ≥ 0, g ≥ 0 on the transmitted branch, s − d ≥ 0. The measured held outward sampling violates it. That does not prove no physical body could do it — a curved underside or a different path could change the sign — but it does mean stronger fitting of the same monotone cap cannot solve the problem.

A further consequence: a smooth ray path meeting one source plane transversely has a continuous source coordinate; a fold changes its derivative, not its continuity. The old hard held seam is therefore not a physical consequence of a smooth single path, and V3 treats any path change as explicit image transport rather than a hidden discontinuity called refraction.

Finally, an operator with a negative high-pass lobe is an image-processing operation, not a probability mixture of passive light paths. Authored tone, readability and highlight operators are legitimate UI operations; hiding them inside an IOR or Fresnel knob makes the system harder to reason about without improving the pixels.

IV.2 The confidence ledger

Proposition	Confidence	What would change it
Removing semantic ink from material inputs is architecturally necessary	High	an isolated source render proving no duplicate ink reaches any consumer
The exact endpoint compositor is required at partial coverage	Algebraic	only its opaque-background/coverage assumptions; it is not a fit
The existing callback and cancellation fixes should survive	High	a production input test exposing a concrete defect
A five-coordinate tapered body satisfies the motion complaints	High for containment and continuity; medium for Apple's extreme silhouettes	a reliable reference contour with a neck or bulge this convex family cannot draw
A spatial fold explains the described edge sticking	High as a mechanism; medium for the chosen profile	a known-source fixture with correct compositing but the wrong source ordering
Held expansion is caused by Apple's content-aware layout	Unresolved	these stills cannot settle causation; V3 implements the requested behaviour and labels it authored
A unique refractive index / thickness / viscosity has been measured	Unsupported	new independent constraints — not a prerequisite for V3

IV.3 Claims that must not return under new names

• No recovered n, thickness, gap, viscosity or volume conservation. 1.845 is a gauge/model member.
• No constant resting plateau as a summary of the measured folded corner: the measured table, its unmeasured shallow extension and its localisation coverage are three different things.
• No "single branch / every gate passed" while the mirrored sheet branch failed or only a localised ring subset was scored.
• No physical ten-pixel held jump inferred from seam models that tied or both missed the data.
• No "a fold requires broad blur", no caustic brightness multiplier 1/|det J|, and no claim that normal-direction compression by itself enlarges chromatic landmark separation — for a landmark, Δd ≈ −Δs / s_d where the local linearisation holds.
• No assumption that colour in a rim over black measures transmitted wavelength dispersion; no maximum-of-three-alpha union described as correct coloured transmission.
• No scaleX = 1+e, scaleY = 1−e "area preservation" — the product is 1 − e², and area would not establish volume anyway.
• No image-history lag, travel-distance law or exact Apple spring inferred from unordered stills.
• No absolute frame-budget success inferred from a relative timing pass, and no frame-completion counter described as measured presentation.
• No "owner approved" label before the owner sees the actual final motion.

IV.4 Still not measured

Sheet material versus tint (confounded by the notification dim), the light-appearance sheet, glass response to device tilt, elements with R < 15 pt, widget glass, in-app glass over a photographic backdrop, the dock's 126 px ends, and the arc-to-run blend width.

---

V. The implementation

15 245 lines of Kotlin across commonMain, androidMain, jvmMain and jvmTest, plus a 916-line sample app. Everything optical is in SkSL — the dialect shared by AGSL (Android 13+) and Skia (Desktop) — kept in Kotlin string constants so the JVM tests can compile and render the same text the device runs.

V.1 The pipeline, end to end

              ┌───────────────────────────────────────────────────────────┐
  page        │ liquidGlassSource(state)  →  one backdrop recording/frame │
  content     └───────────────────────────────────────────────────────────┘
                                    │  GraphicsLayer, recorded before consumers
                                    ▼
        ┌────────────────────────────────────────────────────────────┐
        │ Modifier.liquidGlass(state, style, shape, …)               │
        │   ├─ geometry: analytic SDF, or a sampled GlassPathField   │
        │   ├─ panel pass   (GlassShaderSource)    → material        │
        │   ├─ content pass (GlassContentShaderSource) → ink in glass│
        │   └─ endpoint pass (GlassEndpointShaderSource) → aperture  │
        └────────────────────────────────────────────────────────────┘
                                    │  RenderEffect, cached by uniform equality
                                    ▼
                         the composed frame on screen

• One state, many panels. LiquidGlassState records the backdrop once per frame; every panel samples the region beneath itself out of that single recording. LiquidGlassScene / ProvideLiquidGlassState put it in a composition local so Modifier.liquidGlass() needs no argument.
• Padding is a contract. The recording, the shader's uPad, the sampled distance field and the draw-back translate all take their pad from GlassStyle.recordPad, and that pad is a whole number of layer pixels in the space the layer is recorded in. A field rasterised one pixel off the pad moves the silhouette by exactly that pixel — which is why two test suites exist for it alone (GlassPadContractTest, GlassFieldPadConsumerTest).
• Effects are cached by value. All rendering-affecting state participates in effect-cache equality, so a moving selector does not rebuild a shader it could reuse, and no global mutable diagnostic override leaks across nodes.

V.2 The source files

Optics and material

File	Lines	What it owns
GlassShaderSource.kt	673	the panel shader. Apple publishes no numbers — no blur radius, no index, no falloff exponent — so this is the measured model expressed as SkSL: the signed distance field, the normal, the refraction band, the two-kernel backdrop, tint, rim and contour. V3 added the body branch, the endpoint-alpha output and the edge fold
GlassContentShaderSource.kt	212	the content pass: an element's own content seen through its glass — the symbol a selection lens is crossing, what a magnifier is held over. V3 added the sharp single sample (uInkSplit) and the continuous held ink map (uHeldInk)
GlassContainerShaderSource.kt	430	fusing several panels into one field, with an unrollable member loop bounded by a declared array size
GlassEndpointShaderSource.kt	94	the aperture pass of the exact endpoint compositor: it emits (m·C1, m) so an ordinary source-over completes C = (1−m)C0 + m·C1
GlassBodySource.kt	78	the V3 body's geometry as one shared piece of SkSL, included by the panel pass, the content pass and the coverage mask — one distance field, one normal, one curvature, not three transcriptions that can drift
GlassSourceMapSource.kt	92	the source maps as one shared piece of SkSL: the rest map, the fold, the held ink map and the corner weight. The panel and content passes include the same text
GlassNormalSource.kt	74	the closed-form analytic outline normal and the decision that selects it (analytic shape, band under 0.75 of the inradius, no fusion), shared verbatim by the panel, content and container shaders — the Phase 3 shared-path repair
GlassOklabSource.kt	71	applying a highlight as lightness and chroma rather than as white, so a lit rim over a saturated backdrop does not read as a milky smear
GlassMaterial.kt	136	the measured material as formulas: the opacity tables, the tint constants, the kernel shares
GlassRestMap.kt	166	which source map the resting corner uses — Legacy (what shipped) or Measured (the fitted table)
GlassStyle.kt	668	the style surface: profile, band, depth, mirror, dispersion, kernels, tint, rim, shadow, restMap, and the three V3 additions edgeFold, inkDispersion, heldInkContinuous
GlassMorph.kt	114	lerpGlassStyle / animateGlassStyle — blending two styles for an element morphing between roles, with every field enumerated and the midpoint-snap behaviour audited
GlassAdaptation.kt	127	whether glass over a region flips to its light or dark style — one decision per element, because symbols drawn on the glass must flip with it
GlassPathField.kt	223	a signed distance field for a shape the shader cannot describe analytically
GlassSquircleShape.kt	93	superellipse corners, because a circular arc meets a straight edge with a visible curvature change
GlassFallback.kt	77	the material without a backdrop, for Android below API 31/33: the parts that do not need the backdrop, rather than a flat rectangle

The V3 selector

File	Lines	What it owns
GlassSelectorGeometry.kt	247	the body q = (cx, cy, L, r, k), its exact distance/normal/curvature query, its optical band W = 0.6 min(rL, rR), and containment tests
GlassSelectorConstraints.kt	476	containment as linear rows, the inscribed polygon (chord error ≤ 0.2 px, cached and rebuilt only when the envelope changes), the dual-NNLS projection with constraint generation and pruning, and analytic protrusion (signedDistance(centre) + radius per disk)
GlassSelectorDynamics.kt	822	the authored preset, exact spring stepping, the mode machine, grasp with its attachment offset, content admission with hysteresis, the release envelope, and the substep loop
GlassTabBarV3.kt	195	the Compose adapter: one controller, one frame clock, one snapshot a frame. Everything that decides what the body is doing lives in the controller, which knows nothing about Compose
GlassTabBar.kt	1270	the component the material was measured against: the plate, the item row, the selector, the gesture handler, the callbacks and cancellation semantics, and the V3 opt-in

Composition, state and hosting

File	Lines	What it owns
LiquidGlass.kt	1234	LiquidGlassState, Modifier.liquidGlassSource, Modifier.liquidGlass → liquidGlassCore(…, body, endpointComposite), the uniform pack, the effect cache, the endpoint layer path, GlassFuse, diagnostics
LiquidGlassContainer.kt	272	one panel taking part in a container's merged field
LiquidGlassScene.kt	148	the composition local, currentLiquidGlassState() (which fails with a useful message rather than a null pointer), and the argument-free modifier overloads
LiquidGlassCoverSheet.kt	105	a cover sheet as iOS 27 draws one: an opaque surface whose bottom edge is a lens over its own content while the app beneath is dimmed by pull distance — the §III.5 measurements, implemented
GlassInteraction.kt	188	where the finger is on a panel and how far the press has come up, for the shader
GlassScrollEdge.kt	110	how the scroll edge effect dissolves content beneath floating chrome
GlassGallery.kt	262	a tuning surface — the material can only be judged against content worth refracting
LiquidGlass.android.kt	396	the Android actual: RenderEffect, the AGSL uniform binding, API gating
LiquidGlass.skiko.kt	388	the desktop and web actual: Skia RuntimeEffect, the same uniforms, so the tests render the shipped shader

V.3 The public API

// state and scene
class LiquidGlassState
fun rememberLiquidGlassState(background: Color, renderScale: Float = 1f, …): LiquidGlassState
fun LiquidGlassScene(state: LiquidGlassState, content: @Composable () -> Unit)
fun ProvideLiquidGlassState(state: LiquidGlassState, content: @Composable () -> Unit)
val LocalLiquidGlassState: ProvidableCompositionLocal<LiquidGlassState?>
fun currentLiquidGlassState(): LiquidGlassState

// the two modifiers
fun Modifier.liquidGlassSource(state: LiquidGlassState): Modifier
fun Modifier.liquidGlass(state: LiquidGlassState, style: GlassStyle, shape: Shape, …): Modifier
// …and the scene-scoped overloads that take no state

// style
data class GlassStyle(…)          enum class GlassProfile           enum class GlassRestMap
data class GlassLight(…)          data class GlassShadow(…)         object GlassMaterial
fun lerpGlassStyle(start, stop, fraction): GlassStyle
fun animateGlassStyle(…): State<GlassStyle>

// components
fun GlassTabBar(…)                data class GlassTabBarStyle(…)
fun LiquidGlassContainer(…)       interface LiquidGlassContainerScope     class GlassMember
fun LiquidGlassCoverSheet(…)      fun GlassScrollEdge(…)                  fun GlassGallery(…)
data class GlassSquircleShape(…)  data class GlassInteraction(…)          fun rememberGlassPressSource()
data class GlassSelectorSpec(…)   // the V3 preset, every authored constant exposed

// platform
expect object LiquidGlassSupport   object LiquidGlassDiagnostics

GlassSelectorGeometry, GlassSelectorConstraints, GlassSelectorController and the shader sources are internal: the body is an implementation of a published behaviour, not a public geometry library.

V.4 What V3 changed, and the four declared deviations

Enabled only where asked. GlassTabBarStyle.selector is null by default; GlassStyle.edgeFold, inkDispersion and heldInkContinuous default to the shipped behaviour; every existing consumer, preset and measurement stays on the path it was verified on. GlassTabBarStyle.V3(dark = true) is the measured material plus the two-disk body, the exact endpoint compositor, the straight-run fold at edgeFold = 0.8, one sharp ink sample and the continuous held ink map. The bar's own measured material, tint response, rim and resting-corner table are untouched, and no measured constant was added or re-fitted in this pass.

New uniforms: uBody, uBodyY, uBodyKind (the body), uEndpointAlpha (opaque endpoint output), uEdgeFold (the straight-run program), uInkSplit and uHeldInk (the content pass). The panel shader's output became float outAlpha = (uEndpointAlpha > 0.5) ? 1.0 : coverage;.

The deviations from V3-MODEL.md's seeds, each with the reason it exists:

1. The grasp is bounded in pixels as well as normalised. §7.1 fixes beta and lets width changes happen around it. Implemented literally, a body grown to two and a half slots puts its centre most of a slot from the finger holding it — and the tab a drag commits is decided by that centre, so it changed what a drag selects. beta is additionally clamped so |beta|·A never exceeds the base body's half-width, the same reach the capsule selector allowed.
2. End asymmetry is carved out of the radius. Half height is r + |k|, so aiming the mean radius at the full envelope and adding asymmetry on top puts the two in competition: the wall wins, and the velocity projection then damps every attempt to grow k. The radius target is heldRadius·(1 − 0.12 tanh u) − |k_target|, which keeps the declared envelope exactly and still lets the ends differ inside it.
3. The deformation drive while held is the finger's own speed, not the body's. A grasped body has no spring pulling its centre: the spring's acceleration reads zero exactly where the reference deforms most — at the end of the bar — and feeding back the body's own velocity closes a loop through the radius target that chatters at the substep rate. The drive is −2ζω·v_finger; the body's actual centre velocity is kept separately and is what release carries.
4. The grasp clamp keeps the whole body inside the bar, not just its centre inside the slot range. Without it, a wide held body dragged to the end is handed a centre it cannot have, and the projection — whose metric would rather change the shape than the centre — collapses the body to its minimum radius instead of stopping it at the end.

Two further implementation decisions, declared rather than silently taken: the rim stays inside B1 (ink composites over the rim, as it already did — §8.4 allows the other ordering, which was not adopted), and the selector node is laid out at a stable envelope with the body floating inside it, so the moving optical origin stays continuous while the raster allocation does not change per frame.

V.5 What was deliberately not built

No recovered index, thickness, gap, viscosity or conserved volume. No tangential transport (tau = 0). No image-history buffer, fixed-frame optical lag, caustic brightness multiplier or 1/|det J|. No change to the measured page kernel, tint response or rim photometry. No three-disk extension — nothing in the references demanded a middle bulge two disks cannot express.

---

VI. Verification

122 declared test methods across 20 suites; 133 executed, because GlassTabBarV3GestureTest subclasses GlassTabBarGestureTest and re-runs its 11 ownership scenarios against the V3 selector — so a visual model that changed how many callbacks a tap makes, or let a cancelled drag commit, fails in the same file whatever it looks like. Last full run: 0 failures, fresh with --rerun.

The suites render real frames on the JVM through the shipped shader text and score pixels. They do not re-state the implementation's own expression and call agreement a proof: geometry is scored against a dense boundary oracle, compositing against synthetic compositions with known expected colours, and source maps against independent coordinate-coded readback.

VI.1 The harness

Harness file	Lines	What it does
GlassRender.kt	282	renders the panel shader off-device exactly as LiquidGlass.skiko.kt does at runtime — same text, same uniform names, padded backdrop bound as content, panel inset by pad
GlassSourceField.kt	286	reads the geometry of all three shaders as the source coordinate every pixel samples: the backdrop is coordinate-coded and read back in two passes per axis (coarse in red at ~2 px per level, fine in green at 16/4 px), resolving to ≈ 0.016 px
GlassEndpointRender.kt	269	the three passes of the endpoint compositor, off-device, in the order the modifier runs them

VI.2 The suites, and what each one gates

Geometry and algebra — before anything is rendered

• GlassSelectorBodyTest (9): the analytic query matches a dense boundary oracle away from medial ties (≤ 0.05 px); at zero skew the body is exactly a capsule (1e-3); end asymmetry never moves the declared horizontal centre (< 1e-4 px in double precision); the projection contains the whole contour, not just its centre; a feasible request is returned untouched; velocity projection removes outward motion and never adds speed; the inscribed polygon is conservative at every radius; the spring steps exactly rather than by fixed increments (1 step vs 240 agree); the §6.1 critical centre prediction holds.
• GlassGeometryTest (8): bounds are never inverted; a panel over the backdrop has a region; the distance field is signed and zero on the outline; distance grows with depth rather than saturating; style interpolation hits both ends; edge parameters travel with the morph; decisions snap rather than blend; the shadow deepens with size and busy content.
• GlassTabBarGeometryTest (4): slots share the bar inside the inset; centres are symmetric; nearest index round-trips every centre and clamps the ends; a flick carries one item and never past the ends. Two of these shipped as bugs in the app before the component existed.

Compositing

• GlassEndpointCompositorTest (4): the composition is the complete endpoint equation to within one output code level; a coverage sweep stays exact at every partial aperture (20 000+ partial pixels, chain within two levels); equal endpoints leave the image untouched at every coverage — any silhouette appearing solely from duplicated alpha is a failure; ink keeps its own alpha when the split is off. The naive alternative is shown to differ by more than 8 levels on the same inputs, so the cross term of §8.1 is demonstrated rather than asserted.

Source transport

• GlassEdgeTransportTest (8): the coordinate encoding itself is good to a hundredth of a pixel; the implemented straight map matches the declared profile (≤ 0.25 px); the fold turns where the candidate predicts and nowhere else (0.3545 W, minimum 0.5697 W, exactly one reversal); paired images separate as the square root of the landmark's offset — measured ratio 1 : 1.25 : 1.5 for offsets 4 : 6.25 : 9 px; the arc-to-run transition carries no seam (walked along the constant-depth offset curve, not along a scanline); turning the fold off leaves every existing consumer where it was; the held ink map is continuous through its connection band; the body's implemented map matches its CPU query with identical coverage.
• GlassRestMapTest (14): the knots are unique, finite, strictly increasing and end on identity; every join is continuous and the identity join has slope one on both sides; the compiled table is within a quarter reference pixel of the fitted reference on a dense grid; the orientation is one minimum with source inside display depth everywhere; the coordinate encoding round-trips; the positional constructor prefix is unchanged and the default restMap is Legacy; the generated shader text carries every knot; the panel shader reproduces the table at the reference size and the Vitals size at three render scales; the three shaders sample from the same place; legacy and held profiles keep their differenced normal for the record; the selector leaves the full fold and the held family untouched; formation blends without a pop; the candidate adds no discontinuity along the normal or across the corner/run transition and never samples outward; the candidate rim samples inward only over a hard boundary.

Optics on rendered pixels

• GlassOpticsTest (9): the rim samples outward; the closed-form normal is symmetric in both axes; refraction is continuous across the medial axis of a pill; rim softening spreads the compression line; tint as a medium keeps more backdrop structure; the dome field keeps refraction at the spine of a wide pill; the dark contour sits inside the coverage ramp; the highlight keeps chroma over a saturated backdrop; half scale renders the same material as full scale.
• GlassMeasuredOpticsTest (6) — each test is one claim the calibration captures made: the measured rim samples inward only; the fold shows content twice and hides the innermost band; the committed lens is only an inward offset; the measured tone over flat black and white; the adaptive lift reads light over dark content; the wide kernel sets tone without destroying stripes.

Shader integrity

• GlassShaderTest (8): the panel, content and container shaders compile in Skia — the same dialect the device runs — and every uniform the host sets exists in the shader and every uniform the shader declares is set by the host, in both directions, for all three; the content pass shares the panel shader's geometry; the member loop is bounded by the declared array size.
• GlassPadContractTest (3) and GlassFieldPadConsumerTest (5): recordPad is whole layer pixels at every render scale; the held profile records the outward sampling margin; the worked example rounds up in layer space; the sampled field at the record pad matches the closed form; a field built one pixel off the pad moves the silhouette by that pixel; reduced scale and held/fused geometry keep the silhouette.

The controller, on the production class

• GlassSelectorControllerTest (10): an ordinary tap stays inside the bar and never forms the held lens; a longer tap drives more extra length than a short one (matching §6.1 within 12 % of a slot); the trailing end lags going out and the arriving end bulges coming in; the same timestamps give the same geometry at 60, 90 and 120 Hz (≤ 0.5 px); a delayed frame (50/100/1500 ms) produces no stale fling and no infinite state; a stationary finger still grows the body around the label it is over, then stops; a hold may leave the bar and recovers continuously on release; reduced motion keeps the body still and flat; a retarget mid-flight keeps the values and velocities it already had; every substep is contained, not just every rendered frame.

The component, with real pointer plumbing

• GlassTabBarGestureTest (11, re-run by the V3 subclass): a tap selects once through the item; tapping the selected tab is one callback and stays put; a drag that stops, holds and lifts commits the tab under the lens without a fling; a fast lift flings to the next tab; a cancel before slop selects nothing and releases; a cancel after crossing tabs selects nothing and settles back; a vertical scroll in a scrolling parent takes the gesture without a selection; a takeover after a fling leaves the committed selection; a second tap is a second callback; a second finger taking over cancels the drag instead of committing with stale velocity; with motion disabled a tap still selects once and a drag selects nothing.
• GlassTabBarV3GestureTest (3 + the 11 above): a quick tap never starts the held lens; an ordinary tap keeps the whole body inside the bar; a held drag forms the lens and deforms the body.
• GlassTabBarMotionTraceTest (4): the four replay traces are stable at every frame rate and agree at equal elapsed times; a hold before the lift does not fling and a fast lift does; the shipped rules did fling after a hold and snap velocity on a retarget (the regression, kept as a record); a re-press during the release retargets from the current value and velocity.

Ink clarity, on the real component

• GlassTabBarInkTest (4): the selector's through-source carries no ordinary ink (≤ 2 levels against the no-ink substrate, with a 30+ level control proving the measurement can see ink); moving the aperture does not move the ink it is over (≤ 0.25 px); the selected glyph is as sharp through the selector as drawn directly — within 0.5 px at render scale 1 and 0.25; the selected item shows one glyph, not two.

Presets and rendering references

• GlassTabBarStyleTest (8): every preset constructs with its materials in place (the first build crashed on launch with an NPE from its own companion); the V3 preset agrees with itself across every field that snaps at the morph's midpoint — the §14 style-interpolation audit, as a test; the V3 preset leaves the measured optics alone; the resting inset has no optics; the held lens is clear with a lit edge and no bead; the lens sides are dark because the edge line is directional; the iOS 27 preset only darkens the contour and brightens the highlight; the lens stands proud by the same amount above and below.
• GlassTabBarLensRenderTest (1) and GlassCalibrationRenderTest (1): render the measured held lens over the Phone app's bar from the iOS 27 recording, and render the measured chrome over the same calibration target the iOS captures used — so the capture toolchain can measure the library exactly as it measured the phone.
• GlassCoverageDiagnosticTest (2): the coverage silhouette is pad-invariant across scales, and diagnostics off leave the production path untouched.

VI.3 The ten defects the tests found

None of these were found by reading the code.

1. The constraint buffer silently dropped planes past its capacity — a capsule bar needs about 110 rows and it held 96. A dropped plane lets the body escape exactly where the plane was and snaps it back when the set changes. Overflow is now reported and treated as a solver failure.
2. A release enforced only the planes already violated, so the end of a release was a snap of up to 94 px in one frame.
3. A held finger that stopped kept its last velocity indefinitely, inflating the body's length.
4. Content admission ran against a grasp of zero until a drag was recognised.
5. A finger dragged past the end of the bar collapsed the body to its minimum radius, because the projection metric prefers changing the shape to moving the centre.
6. The frame loop keyed itself on its wake counter, restarting — on every pointer event — the clock that every duration in the controller is measured on.
7. Idle was decided by distance to target, which a contained body never reaches, so the host asked for a frame forever.
8. End asymmetry consumed vertical envelope and was clipped to nothing.
9. The deformation drive fed back the size change it was producing and chattered at the substep rate.
10. The selected ink row was measured at the selector node's constraints instead of the bar's.

---

VII. Results

Pixel 7, serial 28121FDH2006ZF, 1080 × 2400 at density 420, refresh 90.3 Hz. The Phase 3 build the owner rejected is the comparison baseline throughout.

VII.1 The gate table

Gate	Result
Owner outcome 1 — page content bends and stretches coherently into the bar's edge, straight runs included	PASS
Owner outcome 2 — icons and labels stay optically crisp through every selector state	PASS
Owner outcome 3 — a tapped selector deforms, stays contained, and does not become the held lens on DOWN	PASS
Owner outcome 4 — a held selector grows, follows, accommodates, and recovers continuously	PASS
Frame time, median ≤ 2 ms worse than baseline	FAIL — +3.5 ms
Frame time, p95 ≤ 10 % worse	PASS — ratio 0.96
Two-minute soak	PASS
Owner visual acceptance	PENDING

VII.2 The two figures that carry the argument

• analysis/v3/figures/edge_v2_over_v3.png (above) — the same fixture, page and scroll position on both builds. Phase 3 shows the page text upright and legible through the bar's top run: the smeared duplicate that was rejected. V3 shows it reversed and vertically stretched, which is the structure Apple's reference frames 6686 and 6687 show at the same place. The comparison is structural — the backgrounds are ours, not Apple's, and no photometric claim is made.

• analysis/v3/figures/ink_v2_then_v3.png (above) — three Phase 3 frames then three V3 frames of the same held drag. Phase 3's labels are visibly doubled under the lens ("Activity" over "vity", "Communities" over "unities"). V3's are single and sharp, with local rim distortion and colour where the rim crosses a stroke — which is what the references do.

Playable real-time videos of every owner scenario, with labelled 4×-slowed diagnostic copies, are in datasets/device-captures/v3/: short tap, long tap, held drag both directions, hard swipe both directions, a page scrolling under a visible bar, the same long tap and held drag on the Phase 3 build, and the same set on Vitals itself. Mid-gesture frames are extracted into contact sheets, because endpoint screenshots cannot certify morphing.

VII.3 Frame timing — the gate that fails

Two builds alternated under the same scene and the same injected gesture trace (a lens dragged across the bar and back, then a tap), warm-up plus six 30 s measured runs each, thermal and refresh state recorded around every run, parsed by the same reader the earlier closeouts used.

	total p50 per run (ms)	median	GPU p50 median	p95 per run (ms)	p95 median
V3	16 / 28 / 29 / 30 / 29 / 30	29.0	8.0	40 / 101 / 105 / 106 / 101 / 107	103.0
Phase 3	21 / 26 / 25 / 26 / 26 / 25	25.5	9.0	85 / 113 / 105 / 109 / 109 / 101	107.0

• Median completion latency is 3.5 ms worse. The gate is 2 ms, so it fails.
• p95 is 4 ms better — a ratio of 0.96 against a 1.10 limit.
• GPU time is 1 ms cheaper. The cost is entirely CPU-side.

Per stage, over the 720 frames each build's framestats retains:

Stage	V3	Phase 3	Δ
input handling	0.82	0.94	−0.11
animation / frame callback	5.65	5.08	+0.57
traversal	0.06	0.06	0.00
draw recording	2.24	1.61	+0.63
sync	0.17	0.16	+0.01
issue to swap	3.49	3.49	0.00
GPU	12.32	11.80	+0.52

About 1.2 ms of genuine extra CPU per frame — the controller's simulation step and one more layer recording — which amplifies to 3.5 ms of completion latency because both builds are already far over a 90 Hz budget under a continuous drag and the pipeline is backed up.

Two bounded optimisations were made and measured, in this order:

1. The inscribed constraint polygons were being rebuilt from scratch on every substep — about a hundred planes, each a cosine and a sine, four times a frame and twice over — and protrusion was sampling a thousand contour points on every published state. Polygons are now cached and rebuilt only when the envelope changes; protrusion is exact and constant-work (signedDistance(centre) + radius). +10.0 ms → +5.0 ms.
2. The body is no longer rebuilt as an object in the substep hot path, and the selector's node is sized from the layout's actual widest body (A = reach + baseHalfWidth, exact for the bounded grasp) instead of an abstract ceiling. +5.0 ms → +3.5 ms.

What was not done to make the number smaller: no ink blurring, no reduced-resolution ink, no removal of the requested morphology, no widening of the gate.

Absolute 90 Hz smoothness is met by neither build under a continuous lens drag; that is the baseline's own limitation and it is unchanged. Total pN is completion latency (FrameCompleted − IntendedVsync), not a measured presentation time — this device reports no presentation timestamps through dumpsys gfxinfo.

VII.4 Soak

Two minutes of injected gestures on the installed V3 build over a live page — page scrolls, lens drags in both directions at two speeds, tab taps.

	TOTAL PSS	GL mtrack
start	419 MB	137 MB
60 s	419 MB	228 MB
end (120 s)	440 MB	254 MB

315 gestures, no crash, no ANR, MainActivity still foreground at the end, every gesture released. 10 533 frames: p50 16 ms, p90 25 ms, p95 32 ms, 2.2 % janky, 28 missed vsyncs — much better than §VII.3 because a soak is a realistic gesture mix, not a continuous lens drag. Memory rises 21 MB and its graphics share 117 MB: an observation over two minutes, not evidence of a bound, and no allocation is attributed to any component.

The first attempt was lost when the device dropped off USB during its final dumpsys; it returned on its wireless transport and the run above is the complete one.

VII.5 Identities

Artifact	md5
liquidglass-android-0.2.0-SNAPSHOT.aar (local Maven)	e3bdecb96a477b6cbf5a8c45f7575e54
analysis/v3/apk/sample-v3.apk	a019f38ca088949f84e2884b729da229
analysis/v3/apk/vitals-v3.apk	51e84d4c5d83425d395ca3dd61558093
analysis/closeout/phase3 build — the rejected baseline	4ff67de091c47efdb12df974be269ed7

The installed build was verified by pulling base.apk back off the device: byte-identical to vitals-v3.apk, lastUpdateTime 2026-09-14 08:18:01. No timing baseline is left installed.

---

VIII. Limitations

In the order they matter.

1. Frame time. 3.5 ms of extra completion latency under a continuous drag, CPU-side, profiled per stage (§VII.3).
2. The fold's strength is authored. a = 0.8 produces the right structure — one fold, page content reversed and stretched at the edge — but nothing fits it to Apple's own profile, and the references are over a different page.
3. One measured corner size. The resting-corner table was measured at 72 reference px and is carried as a 24 dp design unit by convention, not by a measured dp equivalence. Vitals' corner is 31 dp — a documented scale extrapolation. Its 28-of-246 mutual-localisation coverage is unchanged.
4. Glass seen through glass is not reproduced exactly. With an optically transparent selector over the bar, the selector's interior still differs from the bar beside it. Pre-existing through behaviour, identical on the capsule path, untouched by this pass.
5. The rim is inside B1 — ink composites over the rim, not under it.
6. No OS ACTION_CANCEL is injected. The harness's cancellation is a consuming parent and a vertical-scroll takeover, which reach the same production decision. Stated, not hidden.
7. No recovered physical constant, and most of the dynamics is authored (§IV.1, §I.4).
8. The material's brightening/darkening asymmetry (§III.10) is unresolved.
9. Reduced motion disables the body's deformation, the held growth and the fling, and keeps the selection and cancellation semantics.
10. Owner visual acceptance is pending, and no capture substitutes for it.

---

IX. Reproduction

# library suite, local publish, sample and Vitals
bash research/analysis/v3/tools/v3_build.sh

# device stills and videos, both builds
bash research/analysis/v3/tools/v3_capture.sh v3

# alternating frame timing, six runs each
bash research/analysis/v3/tools/v3_timing.sh

# two-minute soak
bash research/analysis/v3/tools/v3_soak.sh v3

# figures and numbers
python research/analysis/v3/tools/v3_compare.py

The deterministic device fixture, in both variants:

adb shell am start -n com.wexpa.liquidglass.sample/.TabBarFixtureActivity --ez v3 true

adb shell am start -n com.wexpa.liquidglass.sample/.TabBarFixtureActivity --ez v3 false

The suite alone:

./gradlew :liquidglass:jvmTest --rerun

Measurement tools are in tools/ (fitting, lens profiles, device comparison) and in each packet: analysis/v3/tools/, analysis/closeout/phase2/tools/, analysis/inverse-v1/tools/. The decode that every video measurement depends on is in briefs/WHAT-WORKED.md.

---

X. Index

X.1 The documents, in reading order

Entries without a link are local research material, not published in the repository.

Document	What it is
briefs/READ-ME-FIRST.md	the capture brief: the targets, the settings, the screenshot-versus-video rule
briefs/WHAT-WORKED.md	what the dataset is, the HDR decode, the two registration mistakes, tooling limits
briefs/HANDOFF.md	orientation for a new agent: repositories, raw material, weakest reasoning, traps
analysis/FINDINGS.md	every measurement as it was established, numbered — the source for Part III
analysis/MODEL.md	the fitted model and its corrections
analysis/OPTICAL-REASSESSMENT.md, analysis/BUBBLE-CATALOGUE.md	optical re-derivations and the reference-shape catalogue
analysis/THREE-PHASE-CLOSEOUT.md	the contract the three closeout phases ran under
analysis/closeout/phase1/PHASE1-HANDOFF.md	the design Phase 2 implemented; the terminal status of every research card
analysis/closeout/phase2/PHASE2-HANDOFF.md	implementation, A/B against the phone, the correction ledger
analysis/closeout/phase3/FINAL-HANDOFF.md	the shared-path gate, the gesture fixes, the build that was rejected
analysis/OWNER-FINAL-FABLE.md	the owner audit that set the four outcomes
analysis/V3-MODEL.md	the controlling technical design — the authority for Part I
analysis/v3/V3-HANDOFF.md	the V3 delivery packet
analysis/v3/MODEL-DECISIONS.md	every V3 parameter, its provenance, and the declared deviations
analysis/v3/MANIFEST.json	machine-readable gates, identities, repository state, artifact listing
analysis/README.md	the map of the analysis tree

X.2 The three phases, in one paragraph each

Phase 1 — decide, change nothing. One optical change was supported: the shader's restSource(u) predicted a flat 23.8 px source depth for display depths 6–16 px where the phone shows 38.1 → 28.0 px. Against the same 190 measured landmark pairs it scored RMS 6.10 train / 6.80 validate, p95 13.7 / 14.7, worst depth-bin bias 14.7 px — failing every geometry gate; the measured curve scores 0.36 / 0.92, p95 0.87 / 1.37, worst bin bias 1.37 px and passes all of them. A 7.4× landmark-error reduction on withheld data. Everything else was kept, because no candidate beat the shipping form on its own gates. Three measurement defects were corrected: the "dark notch" was the toolbar glyphs (masked, the dark 42.6-level notch is 11.8 and the light "+39 rise" is −6.6); the envelope-width gate was never measurable (the 10 % carrier level lies below the noise floor); and an earlier gauge was not enforced.

Phase 2 — implement and measure back. The measured rest map went in behind GlassStyle.restMap, defaulting to Legacy, with a rendered A/B against the phone, a same-APK device comparison of both map settings, a motion audit with traces, and timing/allocation/cache work. One strict shared-shader geometry gate was left open as Phase 3's condition.

Phase 3 — close the gate, fix the handler, ship the review build. GlassNormalSource.kt made the analytic normal and its applicability decision one shared piece of SkSL for the panel, content and container shaders, and the gate passed. Three interaction fixes landed: cancellation selects nothing and every non-committed exit settles the lens from its current value and velocity; a drag commits once, from the terminal sample of the driving pointer, with a second finger treated as cancellation; retargets carry velocity and stops clear it. Adoption was not widened — 24/24 calibration composites byte-identical to the pre-Phase-2 render. The API comment that equated 24 iOS points with a measured dp was removed.

X.3 Where the material lives

Folder	Contents
briefs/	the capture brief, the decode guide, the agent handoff
datasets/ios27-phone/	the raw iPhone 13 / iOS 27 captures — irreplaceable
datasets/mac-rig/	the WebDriverAgent rig session at three tint positions
datasets/device-captures/	captures of our own builds: Pixel 7, S24+, Huawei, Xiaomi; timing, soaks, V3 videos
datasets/calibration-targets/	the two targets and their generation set
analysis/	measurements, models, decision records, delivery packets (v3/, closeout/, inverse-v1/)
tools/	the measurement and fitting tools the documents cite
competitors/	the eight competitor projects read for docs/research/competitor-source-study.md

analysis/MOVED.md and analysis/DELETED.md record the 2026-09-14 tidy-up: 69 loose files filed by kind, and 107 decoded .npy band stacks (63.5 GB) deleted because tools/scan2.py and tools/scan_pull.py regenerate them from the videos that are still here.

X.4 Related things outside this folder

Where	What
docs/research/	the published write-ups — the same research, edited for the documentation site
~/.m2/repository/dev/shayxo/liquidglass/	the local Maven publish. ./gradlew publishToMavenLocal writes it; the consumer app's 0.2.0-SNAPSHOT resolves against it. Build output, not source — deleting it breaks that build until you publish again
Maven Central	dev.shayxo.liquidglass:liquidglass, released by tag since 0.1.0

---

Compiled 2026-09-14 from the primary documents in this folder. Owner visual acceptance pending; one performance gate failing; no parity claim; no approval claimed.
